UCSD RoboCar ECE & MAE 148

Version 20.7 - 23Oct2022

Prepared by

Dr. Jack Silberman

Department of Electrical and Computer Engineering

and

Dominic Nightingale

Department of Mechanical and Aerospace Engineering

University of California, San Diego

9500 Gilman Dr, La Jolla, CA 92093

Jetson Nano GPIO Header PINOUT 6

VESC 7

VESC Hardware V6.x 8

Motor Detection 10

Sensor Detection 14

Enable Servo Control For Steering 16

VESC Hardware V4.12 (if you have V6, skip this) 17

PWM Controller 18

Wiring adafruit board 19

Detecting the PWM controller 20

Emergency stop - Relay 21

Logitech F710 controller 23

Other JoyStick Controllers 23

LD06 Lidar 25

Laser Map 25

Mechanical drawing 25

Install OpenCV from Source 26

DonkeyCar AI Framework 26

Setting up the DonkeyCar AI Framework 26

Create a virtual environment for the DonkeyCar AI Framework. 27

Confirm openCV build from previous steps 28

Tensorflow 29

PyTorch 32

Installing Donkeycar AI Framework 35

Create a Car 36

Donkeycar manage.py 37

Modifying PWM board configuration 37

Modifying Camera 37

Quick Test 38

Modifying Joystick 39

Calibration of the Throttle and Steering 41

Begin Calibration 42

Saving car configuration file 44

Driving the Robot to Collect data 46

Backup of the uSD Card 50

If needed, we have an uSD Card Image Ready for Plug and Play 52

ROS with Docker 53

Supporting material 54

Introduction

This document was derived from the DIY RoboCar - Donkey Car Framework

Reference information can be found at http://docs.donkeycar.com

At UC San Diego's Introduction to Autonomous Vehicles class (ECE MAE148), we use an AI Framework called Donkey Car which is based on Deep Learning / Human behavior cloning as well as we do traditional programming using Robot Operating System (ROS2).

DonkeyCar can be seen as the "hello world" of affordable scaled autonomous cars

We have added other features into our UCSD scale robot cars that are not found at the Default Donkey car build such as a wireless emergency off switch. Therefore, please follow the instructions found in this document vs. the default Donkey built.

Another framework we use called UCSD Robocar is primarily maintained and developed by Dominic Nightingale right here at UC San Diego. UCSD Robocar uses ROS and ROS2 for controlling our scaled robot cars which can vary from traditional programming or machine learning to achieve an objective. The framework works with a vast selection of sensors and actuation methods in our inventory making it a robust framework to use across various platforms. Has been tested on 1/16, 1/10, 1/5 scaled robot cars and soon our go-karts.

As August 2019 we transitioned from the single board computer (SBC) called Raspberry PI to the Nvidia Jetson Nano. If you are using a Raspberry PI, then search in this document for Raspberry PI (RPI or PI) Configuration.

On 28Aug19, we updated the instructions to include Raspberry PI 4B Depending on your Single Board Computer, Jetson Xavier NX, Jetson Nano, then follow the related instructions.

Single Board Computer (SBC) Basic Setup

We will be using the Ubuntu Linux distribution. In the class you have access to a virtual machine image file with Ubuntu.

We won't install ROS2 directly into the SBC, we will be using Docker images and containers.

You will install OpenCV from source as part of your learning on compiling and building software from source.

Jetson Nano (JTN) Configuration

Instructions to configure the Jetson Nano

Jetson Xavier NX (JNX) Configuration

Instructions to Configure the Jetson Xaviver NX

Archive location to previous JetPack versions

Editing Remotely with Jupyter Notebooks

Install Jupyter notebook on your Jetson:

sudo apt install jupyter-notebook

https://ljvmiranda921.github.io/notebook/2018/01/31/running-a-jupyter-notebook/

Help document for editing using Jupyter notebook:

Conifguring Jupyter Notebook on SSH

Hardware Setup

You should consider breaking the work on building the robots per team member:

a) Someone could start to build OpenCV GPU accelerated in parallel while you build the robot. It will take several hours building OpenCV from source. Try to divide the work by team members ...

b) Start designing, 3D Printing, Laser Cutting the parts

As of Spring 2022, we upgraded all the ECE MAE 148 robots to use VESCs.

VESC

VESC is a super cool Electronic Speed Controller (ESC) that runs open source code with significantly more capabilities than a regular RC Car ESC.

VESCs are very popular for electrical skateboards, DIY electrical scooters, and robotics.

For robotics, one of the capabilities we will use the most is Odometry (speed and position)

based on the sensors on brushless motors (sensored) or to some extent, specially using the latest VESCs and firmware, it is also available with brushless motors without sensors (sensorless).

https://vesc-project.com/

VESC Setup Instructions

Logitech F710 controller

Place your Logitech F710 controller on the [x mode]

(look for small switch in one of the controller face)

Connect the USB JoyStick Dongle into the JTN and then list the input devices again

ls /dev/input

(env) jetson@ucsdrobocar00:~/projects/d3$ ls /dev/input

by-id event0 event2 event4 mice mouse1

by-path event1 event3 [js0] mouse0

We are looking for a js0

Other JoyStick Controllers

JoyStick Controllers - either the Logitech F-10 or PS4

Make sure your myconfig.py on your car directory reflects your controller

Connecting the LogiTech Controller is as easy as plugging in the USB dongle at the SBC.

[If you want to check controller was connected]

ls /dev/input

[and see if js0 is listed.]

[Lets test the joystick in a linux machine]

sudo apt-get update

sudo apt-get install -y jstest-gtk

jstest /dev/input/js0

To remove a device, let's say another JoyStick that you don't use anymore

bluetoothctl

paired-devices

remove THE_CONTROLLER_MAC_ADDRESS

LD06 Lidar

Datasheet for LD06 lidar: datasheet

Laser Map

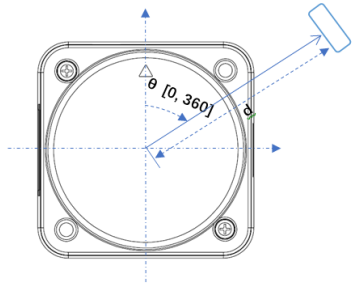

Mechanical drawing

DonkeyCar AI Framework

Setting up the DonkeyCar AI Framework

Reference http://docs.donkeycar.com

Make sure that the OpenCV you want to use supporting CUDA is already available as a systemwide package.

Remember that when you are compiling and building software from source, it may take a few hours ...

SSH into the Single Board Computer (SBC) e.g., RPI, JTN, JNX, etc.

Install some packaged, some may be already installed

sudo apt update -y

sudo apt upgrade -y

sudo usermod -aG dialout jetson

#If packages are being held back

 sudo apt-get --with-new-pkgs upgrade

sudo apt-get install -y build-essential python3 python3-dev python3-pip
libhdf5-serial-dev hdf5-tools libhdf5-dev zlib1g-dev zip libjpeg8-dev
liblapack-dev libblas-dev gfortran libxslt1-dev libxml2-dev libffi-dev
libcurl4-openssl-dev libssl-dev libpng-dev libopenblas-dev openmpi-doc
openmpi-bin libopenmpi-dev libopenblas-dev git nano

Install RPi.GPIO clone for Jetson Nano

https://github.com/NVIDIA/jetson-gpio

pip3 install Jetson.GPIO

If the pip install complains about ownership of the directory*

then execute the following command

sudo chown -R jetson:jetson /home/jetson/.cache/pip

ex:

WARNING: The directory '/home/jetson/.cache/pip/http' or its parent directory is not owned by the current user and the cache has been disabled. Please check the permissions and owner of that directory. If executing pip with sudo, you may want sudo's -H flag.

WARNING: The directory '/home/jetson/.cache/pip' or its parent directory is not owned by the current user and caching wheels has been disabled. check the permissions and owner of

that directory. If executing pip with sudo, you may want sudo's -H flag.

If pip breaks for some reason, you can reinstall it with the following lines

python3 -m pip uninstall pip

sudo apt install python3-pip --reinstall

If the install request elevated privileges, execute the following command

sudo pip3 install Jetson.GPIO

if pip has a new version

pip3 install --upgrade pip

Let's make sure the user jetson can use gpio

sudo groupadd -f -r gpio

sudo usermod -a -G gpio jetson

sudo cp /opt/nvidia/jetson-gpio/etc/99-gpio.rules /etc/udev/rules.d/

28Jan20 - did not work with JetPack3.4

15May21- did not work with JetPack4.5

19Oct21 - did not work with JetPack4.6

18Sep22 - did not work with JetPack4.6.2

Will get back to it later if the jetson user can not access GPIO

sudo udevadm control --reload-rules && sudo udevadm trigger

We want to have control over the versions of each software library to minimize the framework from

breaking after system-wide upgrades. Therefore, lets create a virtual environment for the DonkeyCar.

Create a virtual environment for the DonkeyCar AI Framework.

If you want the virtual environment to be under the user's home directory, make sure to be on the

home directory for user jetson

If you have not done so, lets create a directory to store our projects and one subdirectory

to store virtual environments

cd ~

mkdir projects

cd projects

mkdir envs

cd envs

pip3 install virtualenv

if complains about user permission

pip3 install virtualenv --user

We will create a virtual environment called donkey since our AI framework is based on the Donkey Car project

python3 -m virtualenv -p python3 donkey --system-site-packages

Since your SBC will be initially dedicated to the class AI framework (Donkey), at least until your custom project starts, let's activate the donkey virtual env automatically every time the user Jetson logs into the SBC. We can remove this settings later if needed when using ROS2

echo "source ~/projects/envs/donkey/bin/activate" >> ~/.bashrc

source ~/.bashrc

When a virtual environment is active, you should see (name_of_virtual_enviroment) in front of the terminal prompt.

ex:

(donkey)jetson@ucsdrobocar-xxx-yy:

At this point, using pip and pip3 should be the same as using pip3 by default in this virtual environment.

https://docs.donkeycar.com/guide/robot_sbc/setup_jetson_nano/ 46

it is necessary to create a link to it

Go to the folder where OpenCV's native library is built

 cd /usr/local/lib/python3.6/site-packages/cv2/python-3.6

Rename

 mv cv2.cpython-36m-xxx-linux-gnu.so cv2.so

Go to your virtual environments site-packages folder if previously set

 cd ~/env/lib/python3.6/site-packages/

#Or just go to your home folder if not set a venv site-packages folder

cd ~

Symlink the native library

ln -s /usr/local/lib/python3.6/site-packages/cv2/python-3.6/cv2.so cv2.so

NOTE that it is almost mandatory to create a virtual environment in order to properly install tensorflow, scipy and keras, and always a best practice.

cd ~/projects/envs/donkey/lib/python3.6/site-packages/

ln -s /usr/local/lib/python3.6/site-packages/cv2/python-3.6/cv2.so

cv2.so

Confirm that OpenCV built from previous steps is working on the virtual environment Donkey

Testing to see if OpenCV is installed in the virtual env.

python3 -c 'import cv2 as cv; print(cv.__version__)'

(donkey) jetson@ucsdrobocar-xxx-yy:~/projects/envs/donkey$ python3 -c 'import cv2 as cv; print(cv.version)'

4.6.0

We won't use Python2, but just in case one will need it for some

reason

python2 -c 'import cv2 as cv; print(cv.__version__)'

We are not done installing software yet. We need to install more dependencies..

Make sure you have the donkey virtual environment activated

Step 3a: Install System-Wide Dependencies

First install some packages with apt-get.

sudo apt-get update -y
sudo apt-get upgrade -y
sudo apt-get install -y libhdf5-serial-dev hdf5-tools libhdf5-dev zlib1g-dev zip libjpeg8-dev liblapack-dev libblas-dev gfortran
sudo apt-get install -y python3-dev python3-pip
sudo apt-get install -y libxslt1-dev libxml2-dev libffi-dev libcurl4-openssl-dev libssl-dev libpng-dev libopenblas-dev
sudo apt-get install -y git nano
sudo apt-get install -y openmpi-doc openmpi-bin libopenmpi-dev libopenblas-dev

Setup Python Dependencies

Next, you will need to install packages with pip:

pip3 install -U pip testresources setuptools
pip3 install -U futures==3.1.1 protobuf==3.12.2 pybind11==2.5.0
pip3 install -U cython==0.29.21 pyserial
pip3 install -U future==0.18.2 mock==4.0.2 h5py==2.10.0 keras_preprocessing==1.1.2 keras_applications==1.0.8 gast==0.3.3
pip3 install -U absl-py==0.9.0 py-cpuinfo==7.0.0 psutil==5.7.2 portpicker==1.3.1 six requests==2.24.0 astor==0.8.1 termcolor==1.1.0 wrapt==1.12.1 google-pasta==0.2.0
pip3 install -U gdown

# This will install tensorflow as a system package
#pip3 install --pre --extra-index-url https://developer.download.nvidia.com/compute/redist/jp/v45 tensorflow==2.3.1
#Note: As of oct 20, 2024 I could not find a tensorflow version that worked. But it seems to be possible to get by without it, as tensorflow is mainly required for training which we do on the GPU cluster.

As of Summer II 2022, we are using a new Stereo Camera from Luxonis

Configuring OAKD Lite

Open a terminal window and run the following commands:

sudo apt update && sudo apt upgrade

after upgrades

sudo reboot now

If you have not added the extra swap space while building OpenCV, please add it

You can use jtop to add more swap space using the left and right keys and clicking the plus button

jtop

4

Add 4G of swap and press S to enable it.

Alternatively you can use the command line

#Disable ZRAM:

sudo systemctl disable nvzramconfig

Create 4GB swap file

sudo fallocate -l 4G /mnt/4GB.swap

sudo chmod 600 /mnt/4GB.swap

sudo mkswap /mnt/4GB.swap

If you have an issue with the final command, you can try the following:

sudo nano /etc/fstab

#Add this line at the bottom of the file

/mnt/4GB.swap swap swap defaults 0 0

#Reboot

sudo reboot now

Installing dependencies

Navigate to the directory where you will be installing the luxonis libraries using cd ~/projects

sudo nano install_dependencies.sh

Copy the entire contents of the file: install_dependencies.sh

bash install_dependencies.sh

echo "export OPENBLAS_CORETYPE=ARMV8" >> ~/.bashrc

echo 'SUBSYSTEM=="usb", ATTRS{idVendor}=="03e7", MODE="0666"' |

sudo tee /etc/udev/rules.d/80-movidius.rules

sudo udevadm control --reload-rules && sudo udevadm trigger

Navigate using cd to the folder where you would like to install the

camera example files and requirements

cd ~/projects

git clone https://github.com/luxonis/depthai-python.git

cd depthai-python/examples

python3 install_requirements.py

If you want to test the camera and you have remote desktop

NoMachine already installed and the OAKD Lite is connected to JTN , run the following in the terminal on a NoMachine session

Navigate to the examples folder in depthai-python first and then

cd ColorCamera

python3 rgb_preview.py

You should be able to see preview video on the No machine desktop

Installing Donkeycar AI Framework

Install Donkeycar Python Code

Change to a dir you would like to use as the head of your projects. Assuming you've already made the projects directory above, you can use that. Get the latest 4.5.X release and install that into the venv.

mkdir projects
cd ~/projects
git clone https://github.com/autorope/donkeycar
cd donkeycar
git fetch --all --tags -f
git checkout 4.5.1
pip install -e .

Lets enable the use of synchronization of files with remote computers using rsync

sudo apt-get install rsync

This part will take a bit of time. Be patient, please keep in mind that you are using a low power single board computer (SBC).

If you are curious if your SBC is really working, you can open another tab in the terminal window or a complete new terminal window, ssh to the JTN then execute the command top or htop

look at the CPU utilization...

Create a Car

Let's create a car on the path ~/projects/d4

cd ~/projects/donkeycar

donkey createcar --path ~/projects/d4

Make sure the DonkeyCar is version 4.5.1. The latest version of the DonkeyCar (5.x) does not work at the Jetson Nano yet.

You spent several hours on this configuration right?! Please make a backup of your uSD card - "Backup of the uSD Card"

Modifying Camera

Change the camera type to MOCK to enable us to test the system without a camera

nano myconfig.py

CAMERA

if you have USB camera connected to the JTN , use WEBCAM

And change this line so the Donkey can run using the web interface

USE_JOYSTICK_AS_DEFAULT = False

Quick Test

Lets test the Donkey AI framework install

python manage.py drive

Lets connect to the JTN by using a web browser from your PC

http://ucsdrobocar-xxx-yy:8887

You should see a screen like this

We stop the Donkey with Ctrl-C

Ctrl-C

Modifying Joystick

Now let's change the type of joystick we use with Donkey

nano myconfig.py

JOYSTICK

USE_JOYSTICK_AS_DEFAULT = True when starting the manage.py, when True, wil$

JOYSTICK_MAX_THROTTLE = 0.5 this scalar is multiplied with the -1 to$

JOYSTICK_STEERING_SCALE = 1.0 some people want a steering that is less$

AUTO_RECORD_ON_THROTTLE = True if true, we will record whenever throttle$

python manage.py drive

ex

Starting vehicle...

Opening /dev/input/js0...

Device name: Logitech Gamepad F710

recorded 10 records

recorded 20 records

recorded 30 records

recorded 40 records

erased last 100 records.

E-Stop!!!

recorded 10 records

recorded 20 records

recorded 30 records

recorded 40 records

recorded 50 records

The Right Joystick is the Throttle, the Left Joystick is the Steering

The Y Button deletes 5s of driving at the default configuration =100 records at 20 Hz

The A Button is the emergency break

Joystick Controls:

+------------------+---------------------------+

| control | action |

+------------------+---------------------------+

| start | toggle_mode |

| B | toggle_manual_recording |

| Y | erase_last_N_records |

| A | emergency_stop |

| back | toggle_constant_throttle |

| R1 | chaos_monkey_on_right |

| L1 | chaos_monkey_on_left |

| circle | show_record_acount_status |

| R2 | enable_ai_launch |

| left_stick_horz | set_steering |

| right_stick_vert | set_throttle |

+------------------+---------------------------+

If your joystick is not returning to neutral

You can add a deadzone value

on myconfig.py

ex:

NETWORK_JS_SERVER_IP = "192.168.0.1"when listening for network joystick cont$

JOYSTICK_DEADZONE = 0.01 when non zero, this is the smallest throt$

JOYSTICK_THROTTLE_DIR = -1.0 use -1.0 to flip forward/backward, use $

Lets Integrate the JTN and PWM Controller into the RC Chassis

Charge your LiPo Battery

After you charge your Lithium Polymer (LiPo) battery(ries) - some info here

Connect the battery(ries) and batteries monitor/alarm

Please do not use the batteries without the batteries monitor/alarms

If you discharge a LiPO batteries below a threshold lets say 3.0

VESC

Ensure that you have already configured the VESC device using the VESC Tool Software

Edit the myconfig.py to have these values

DRIVE_TRAIN_TYPE = "VESC"

VESC_MAX_SPEED_PERCENT =.2 ## Max speed as a percent of actual max speed

VESC_SERIAL_PORT= "/dev/ttyACM0" ## check this val with ls /dev/tty*

VESC_HAS_SENSOR= True

VESC_START_HEARTBEAT= True

VESC_BAUDRATE= 115200

VESC_TIMEOUT= 0.05

VESC_STEERING_SCALE = .5

VESC_STEERING_OFFSET = .5

DONKEY_GYM = False

(we will leave the CAMERA_TYPE = "MOCK" for now to make sure we can drive the car with the VESC)

Download the following files

https://drive.google.com/drive/folders/19TS3VyNXQPBSr41yiPaxpI1lnxClI2c8?usp=sharing

And replace them on the Jetson in the locations shown in the images below. Note - to get the files on the jetson you can use SFTP (secure file transfer protocol):

Examples on how to use SFTP:

sftp jetson@ucsdrobocar-148-xx.local

cd To the directory you want to go to

put /File/Path/On/Your/Computer

alternatively

get filename /File/Location/You/Want/Them/Go/On/Your/Computer

To get a directory

get -rf filename /File/Location/You/Want/Them/Go/On/Your/Computer

type "exit" to disconnect

Once these have been replaced, you should run

python manage.py drive

It should first throw a pyvesc import error.
To import the library, run

pip install git+https://github.com/LiamBindle/PyVESC.git

Then run it again. It should throw a permissions error. Follow the advice on how to fix the error with chmod

Int(10) error bug fix (Credit Saimai Lau and Albert Chang): When running python manage.py drive, the intermittent "invalid literal for int() with base 10: 'None' error is from the VESC package checking whether the version of the VESC is below 3.0, so we can comment out that part since we're using 6.0 just do

nano
/home/jetson/projects/envs/donkey/lib/python3.6/site-packages/pyvesc/VESC/VESC.py

and put # at the beginning of lines 38-40 Then ^S to save and ^X to exit

Error explanation: The self.get_firmware_version() get thes version by requesting it from the VESC and reading the replied bytes, but sometimes the data is lost or incomplete so the function returns 'None' as the version. We already know the version is 6.0 so we don't need this function.

OAKD

Once you have the VESC driving the car, you will need to make sure you have set up the document by following the instructions labeled Configuring OAKD Lite found earlier in this document

Edit the myconfig.py camera type to OAKD

CAMERA_TYPE = "OAKD" CAMERA_INDEX = 0

Make sure the camera is working by checking the images that are being saved to the /data/images directory.

The easiest way to do this is to go to

http://ucsdrobocar-xxx-yy:8887 while running donkeysim, and you should be able to see a livestream from the camera. Note - if several people are running donkeysim at the same time on the same wifi this interface may get buggy

You can also do this by either: Transferring the files to you laptop or virtual machine

with scp, sftp, rsync, winscp (windows) or filezilla (mac)

or

Using NoMachine by following the instructions found here in this document

Note, you can go to https://docs.google.com/document/d/1Gy4CEKjqXZub0rz-YmxFOakj9O_ZjMmlUYe7NLdM4FY/edit instead for a more comprehensive guide.

Table of Contents

Introduction

Single Board Computer (SBC) Basic Setup

Jetson Nano (JTN) Configuration

Jetson Xavier NX (JNX) Configuration

Editing Remotely with Jupyter Notebooks

Hardware Setup

VESC

Logitech F710 controller

Other JoyStick Controllers

LD06 Lidar

Laser Map

Mechanical drawing

DonkeyCar AI Framework

Setting up the DonkeyCar AI Framework

Create a virtual environment for the DonkeyCar AI Framework.

Confirm that OpenCV built from previous steps is working on the virtual environment Donkey

Testing to see if OpenCV is installed in the virtual env.

We won't use Python2, but just in case one will need it for some

Step 3a: Install System-Wide Dependencies

Setup Python Dependencies

As of Summer II 2022, we are using a new Stereo Camera from Luxonis

Configuring OAKD Lite

after upgrades

Create 4GB swap file

Installing dependencies

Navigate using cd to the folder where you would like to install the

If you want to test the camera and you have remote desktop

Navigate to the examples folder in depthai-python first and then

Installing Donkeycar AI Framework

Install Donkeycar Python Code

Create a Car

Modifying Camera

CAMERA

if you have USB camera connected to the JTN , use WEBCAM

And change this line so the Donkey can run using the web interface

Quick Test

We stop the Donkey with Ctrl-C

Modifying Joystick

VESC

OAKD
