Lane Tracking with ROS2 and OpenCV2

This assignment was perhaps one of the easier ones

Configuration

We used a built docker image provided by our class that had all the files and dependencies. The configurations that were necessary was setting up the X11 server for GUI forwarding and giving access to all the jetson's hardware. With our provided docker image, we would run this command.

note

Much thanks to Winston for providing this.

docker run \
    --name <Container Name> \
    -it \
    --privileged \
    --net=host \
    -e DISPLAY=$DISPLAY \
    -v /dev/bus/usb:/dev/bus/usb \
    --device /dev/video0 \
    -v  <your Xauthority file>:/root/.Xauthority:rw \
    djnighti/ucsd_robocar:devel

Hardware Configuration

Next, we had to change the car configuration yaml file that told the ROS2 which hardware we were using.

sick: 0
livox: 0
bpearl: 0
rp_lidar: 0
ld06: 0
webcam: 0
intel: 0
oakd: 1 ## Camera
zed: 0
artemis: 0
ublox: 0
nmea: 0
vesc_with_odom: 0
vesc_without_odom: 1 ## Vesc
adafruit: 0
adafruit_servo: 0
adafruit_continuous_servo: 0
esp32: 0
stm32: 0
bldc_sensor: 0
bldc_no_sensor: 0

Software Configuration

In order for the lane detection to work, we had to tune our filter mask such that it picked up only yellow lines. This was first done using the camera_nav_calibration package. The nodes could be toggled via yaml.

#
# param: 1-on, 0-off
#
# sensors/hardware/simulator
all_components: 1
simulator: 0

# camera navigation
camera_nav_calibration: 1
camera_nav: 0

# recording data
rosbag_launch: 0

# TODO: Obstacle Avoidance
simple_obstacle_detection_launch: 0

# rviz
sensor_visualization: 0

# control
manual_joy_control_launch: 0
f1tenth_vesc_joy_launch: 0
pid_e_launch: 0
pid_llh_launch: 0
pid_servo_launch: 0
lqr_launch: 0
lqg_launch: 0
lqg_w_launch: 0
mpc_launch: 0
pid_gps_calibration_launch: 0
pid_gps_launch: 0

# path planner
path_nav_launch: 0
tube_follower_launch: 0
curve_localizer_launch: 0
gps_nav_launch: 1

# Basics
sub_camera_launch: 0
sub_lidar_launch: 0
subpub_camera_actuator_launch: 0
subpub_lidar_actuator_launch: 0

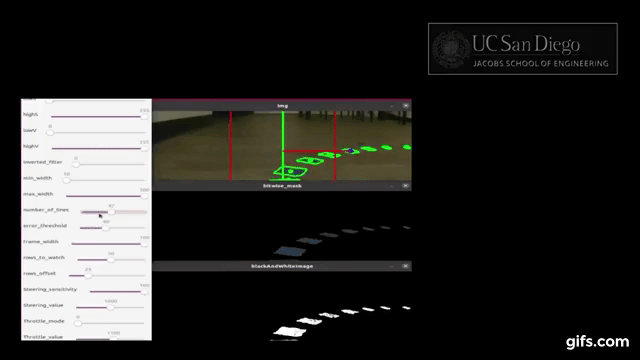

This would allow us to dynamically change our filters

The only downside was that we had to write down these values and manually change them in another yaml file that was taken as arguments for the navigation and lane tracking nodes. The reason was that the camera navigation didn't overwrite the yaml file and instead was just for calibration.

lane_detection_node:
  ros__parameters:
    Hue_low : 18
    Hue_high : 50
    Saturation_low : 75
    Saturation_high : 255
    Value_low : 145
    Value_high : 255
    number_of_lines : 100
    error_threshold : 0.16
    Width_min : 15
    Width_max : 112
    gray_lower : 61
    inverted_filter : 0
    kernal_size : 3
    erosion_itterations : 1
    dilation_itterations : 4
    crop_width_decimal  : 0.7
    rows_to_watch_decimal  : 0.2
    rows_offset_decimal  : 0.5
    camera_centerline : 0.55
calibration_node:
  ros__parameters:
    Hue_low : 18
    Hue_high : 50
    Saturation_low : 75
    Saturation_high : 255
    Value_low : 145
    Value_high : 255
    number_of_lines : 100
    error_threshold : 0.16
    Width_min : 15
    Width_max : 112
    gray_lower : 61
    inverted_filter : 0
    kernal_size : 3
    erosion_itterations : 1
    dilation_itterations : 4
    crop_width_decimal  : 0.7
    rows_to_watch_decimal  : 0.2
    rows_offset_decimal  : 0.5
    camera_centerline : 0.55
lane_guidance_node:
  ros__parameters:
    Kp_steering : 0.8
    Ki_steering : 0.0
    Kd_steering : 0.0
    zero_throttle  : -0.03200000000000003
    max_throttle : 0.382
    min_throttle : 0.363
    error_threshold : 0.16
    max_right_steering : 0.792
    max_left_steering : -0.831
vesc_twist_node:
  ros__parameters:
    max_potential_rpm : 20000
    steering_polarity : 1
    throttle_polarity : 1
    zero_throttle  : -0.03200000000000003
    max_throttle : 0.382
    min_throttle : 0.363
    max_right_steering : 0.792
    straight_steering : -0.21999999999999997
    max_left_steering : -0.831
adafruit_twist_node:
  ros__parameters:
    steering_polarity : 1
    throttle_polarity : 1
    zero_throttle  : -0.03200000000000003
    max_throttle : 0.382
    min_throttle : 0.363
    max_right_steering : 0.792
    straight_steering : -0.21999999999999997
    max_left_steering : -0.831

If all was said and done, it would allow our car to automously navigate the lanes with our given filter.

The video below is our car autonomously driving given calibrated mask.
